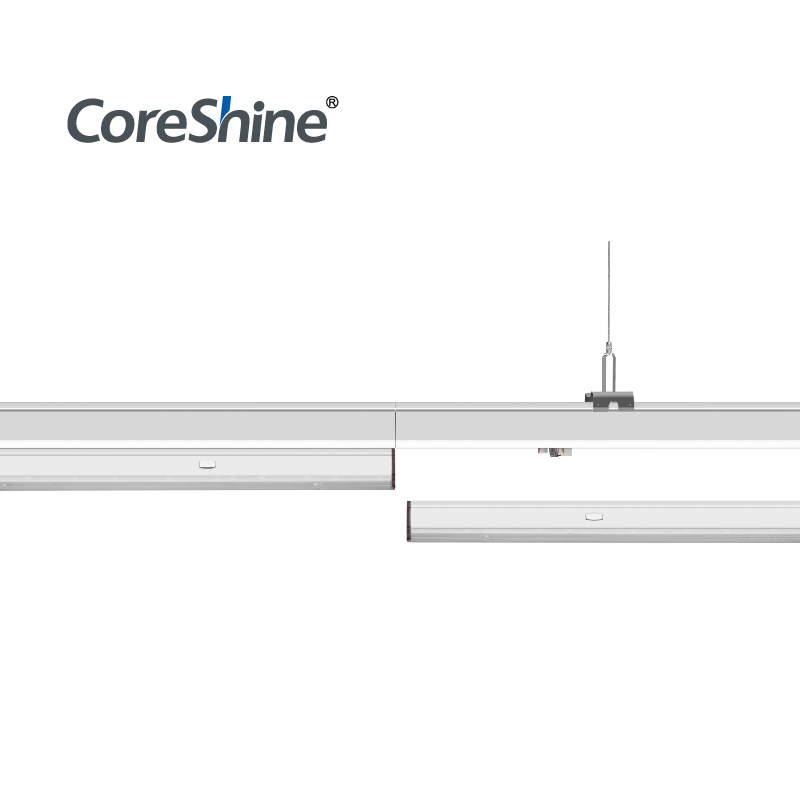

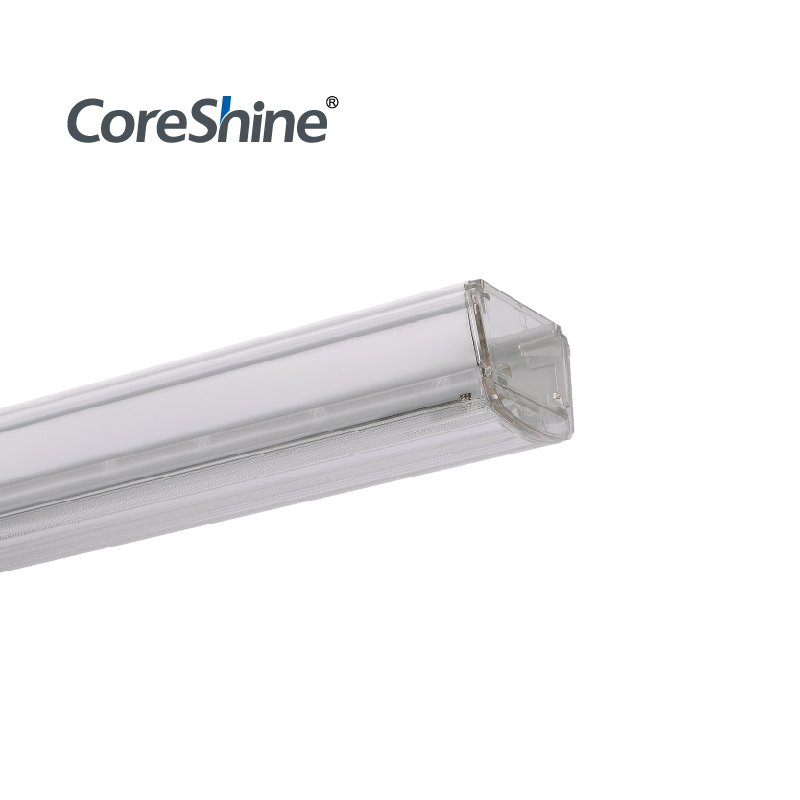

Professional Design High Output Linkable Hanging Lights Modern Led Lighting Pendant Linear Light
Professional Design High Output Linkable Hanging Lights Modern Led Lighting Pendant Linear Light
Professional Design High Output Linkable Hanging Lights Modern Led Lighting Pendant Linear Light
Professional Design High Output Linkable Hanging Lights Modern Led Lighting Pendant Linear Light
Professional Design High Output Linkable Hanging Lights Modern Led Lighting Pendant Linear Light
1 / 5
Professional Design High Output Linkable Hanging Lights Modern Led Lighting Pendant Linear Light
Professional Design High Output Linkable Hanging Lights Modern Led Lighting Pendant Linear Light
Professional Design High Output Linkable Hanging Lights Modern Led Lighting Pendant Linear Light
Professional Design High Output Linkable Hanging Lights Modern Led Lighting Pendant Linear Light
Professional Design High Output Linkable Hanging Lights Modern Led Lighting Pendant Linear Light

Professional Design High Output Linkable Hanging Lights Modern Led Lighting Pendant Linear Light

Send Inquiry

Product Description

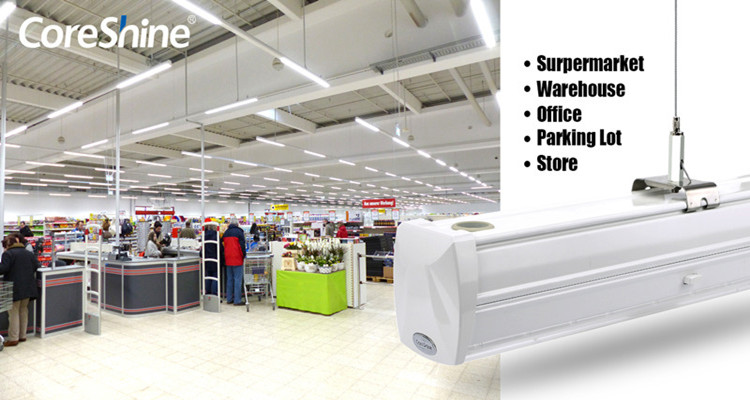

Product Description Image
Product Description & Benefits
  • High efficiency to save energy cost, up to 195lm/w
  • Pre-wired trunking rail, plug & play, Tool-free for installation, save 80% labor and wiring cost
  • Long rated life : L80 @60,000 hrs, L90 @ 50,000 hrs, 5 years warranty
  • Flexible beam angle: 30°/60°/90°/120°/right or left asymmetric/double-asymmetric
  • Multi-function: DALI/1-10V Dimming, Emergency, Track spotlight module, Sensor module, Exit Sign module
  • Easy for maintenance, just push button to replace a single luminaire without affecting other lights
  • The maximum current is 16A, One power feed-in can support max. 3500w/row
Project Cases

Application Area: Supermarket & Warehouse & Car showroom & others

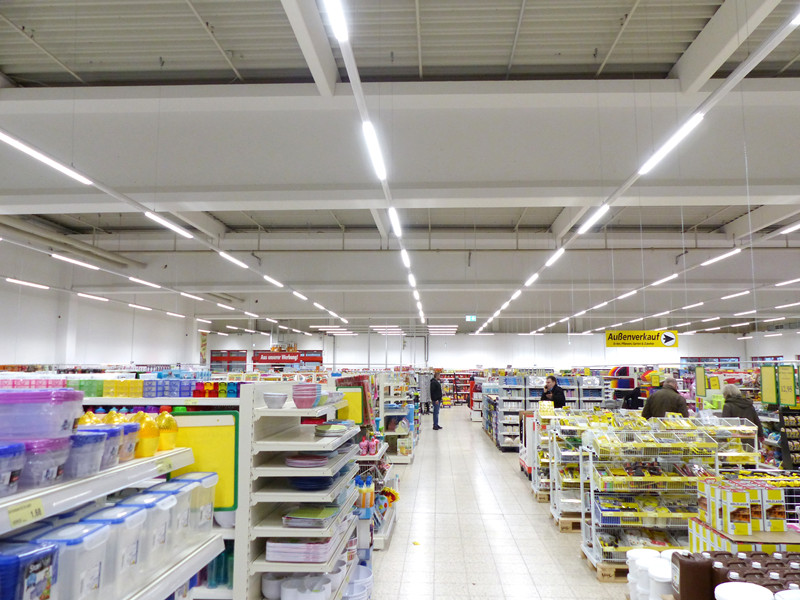

Project Case 1

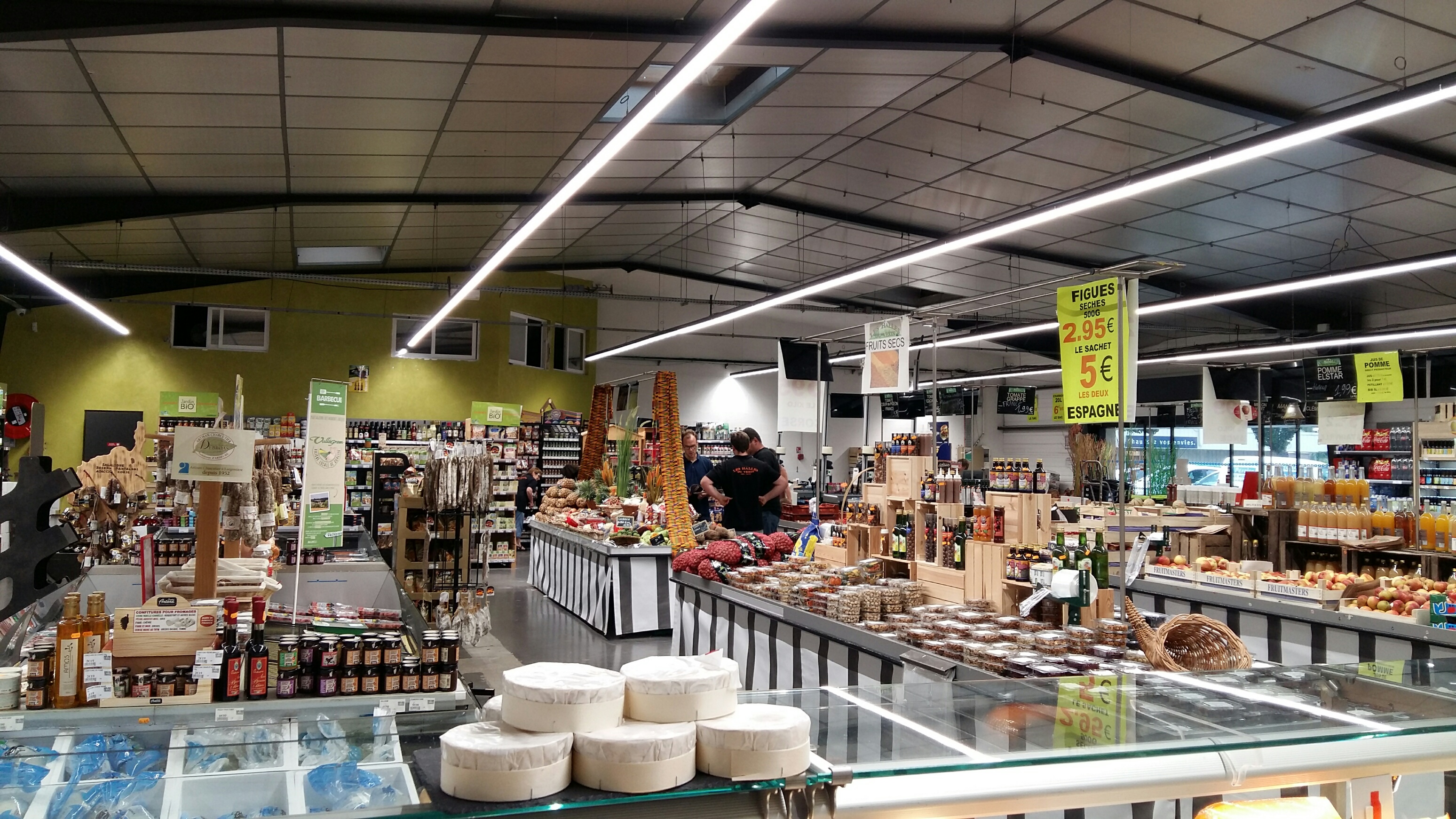

Project Case 2

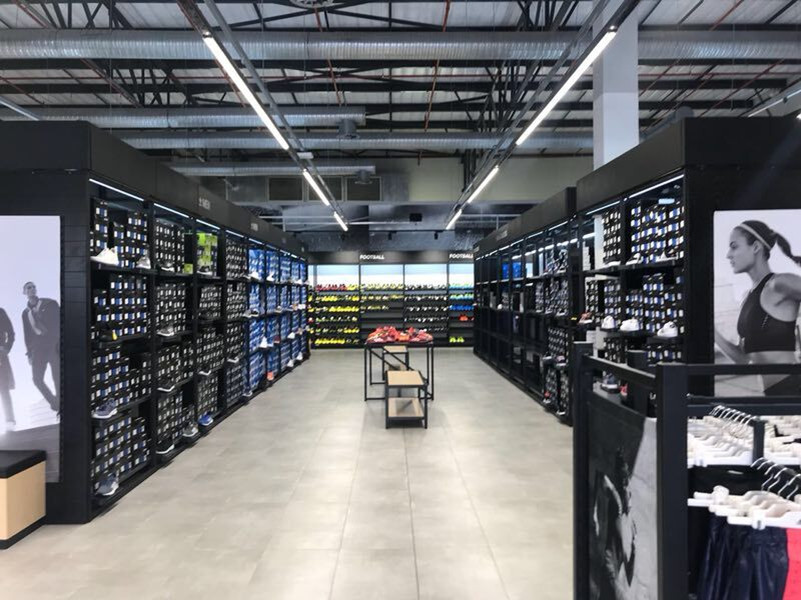

Project Case 3

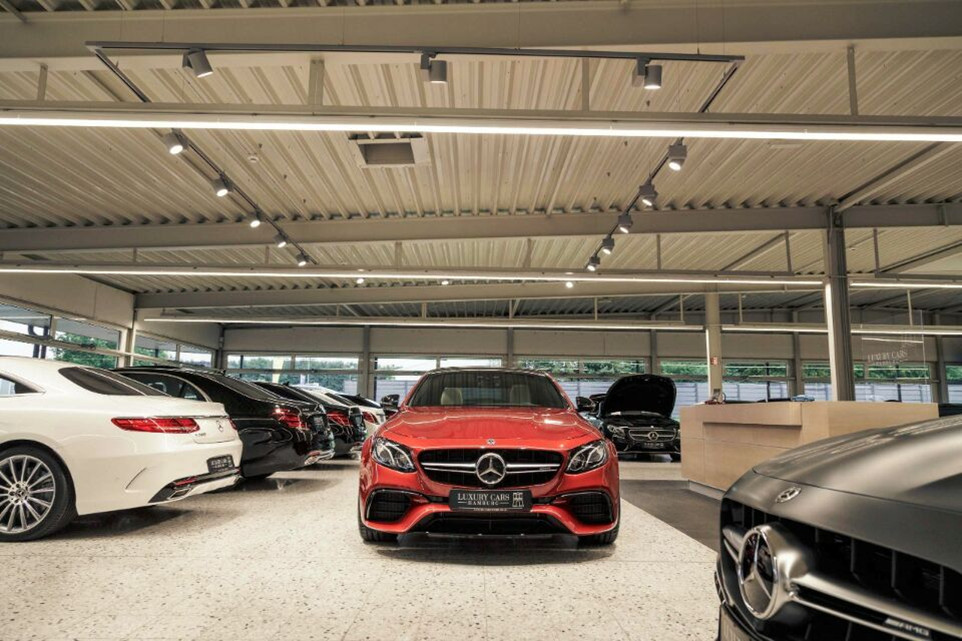

Project Case 4

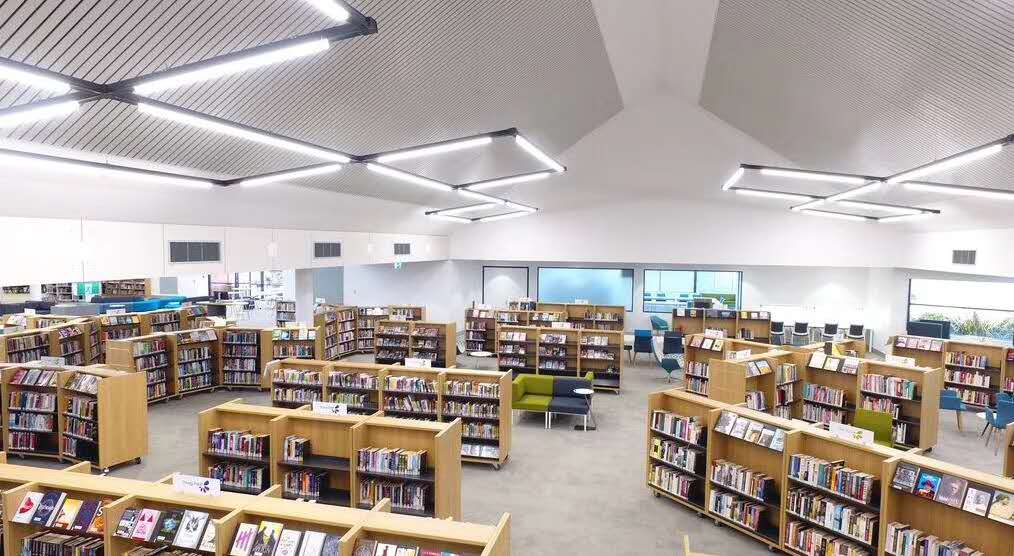

Project Case 5

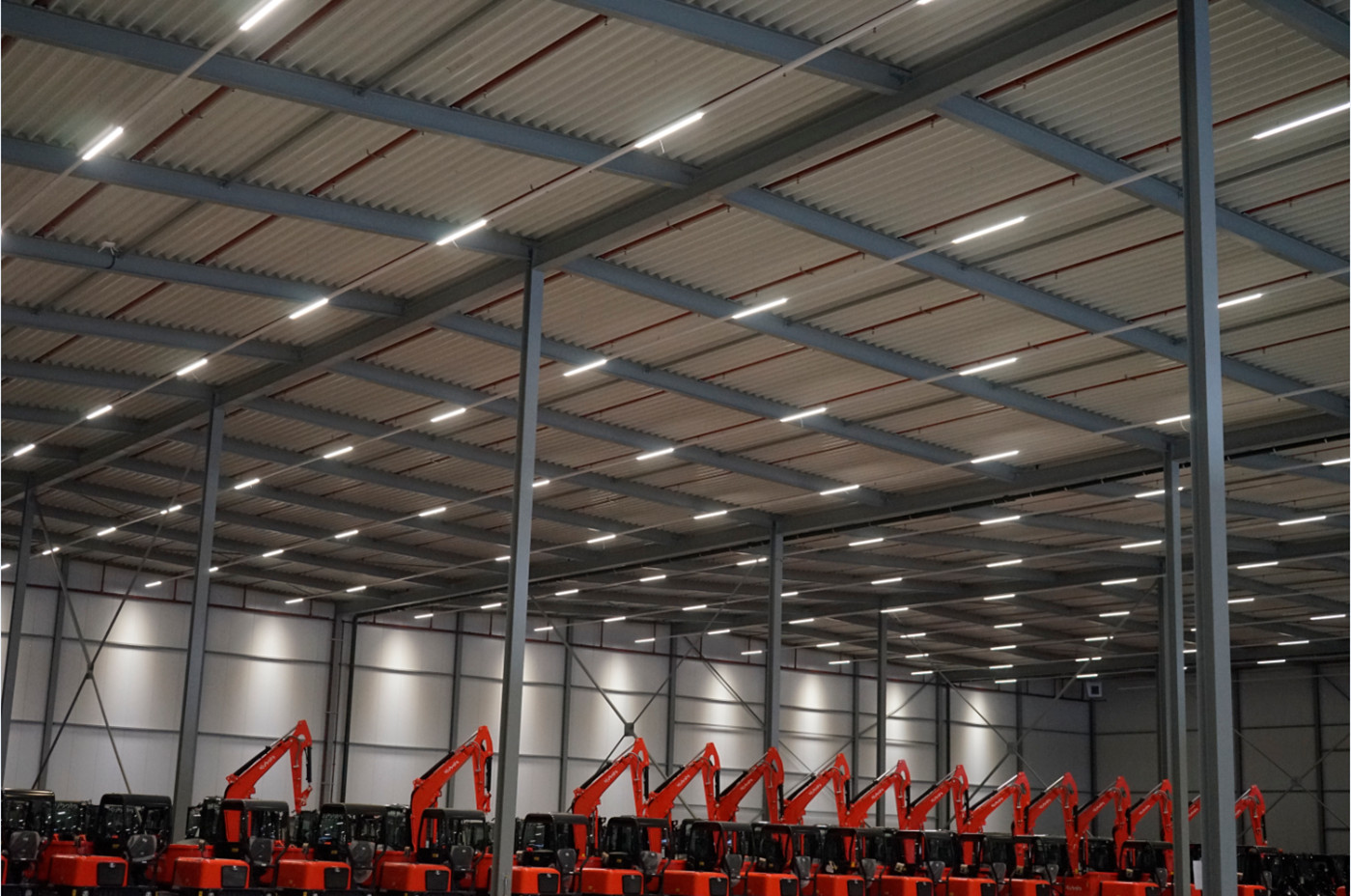

Project Case 6
Detailed Structure & Accessories
Trunking rail
Trunking rail
Luminaire
Luminaire
Function module
Function module

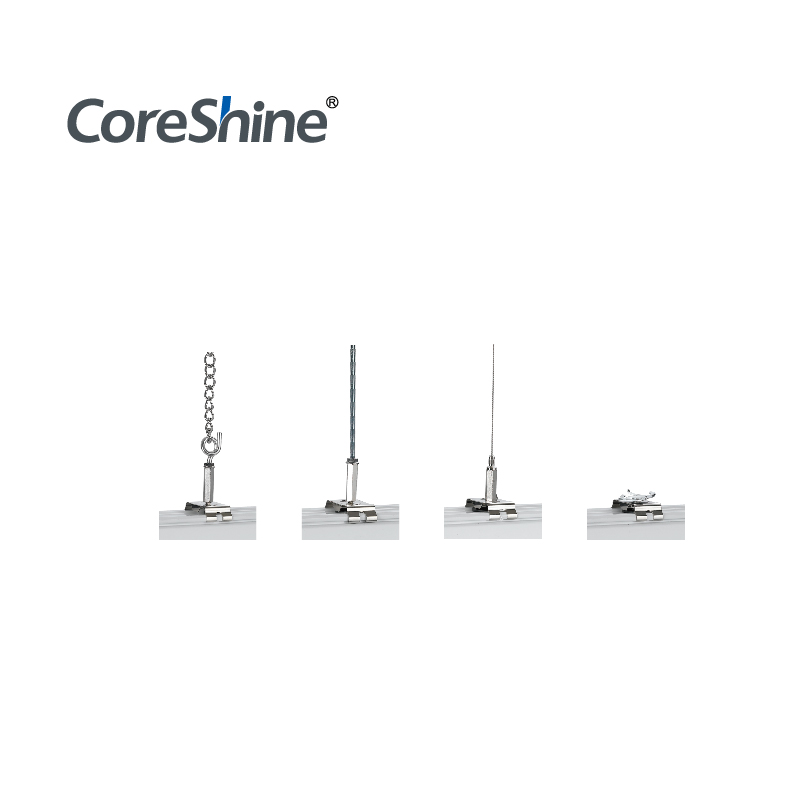

Accessories
Accessories

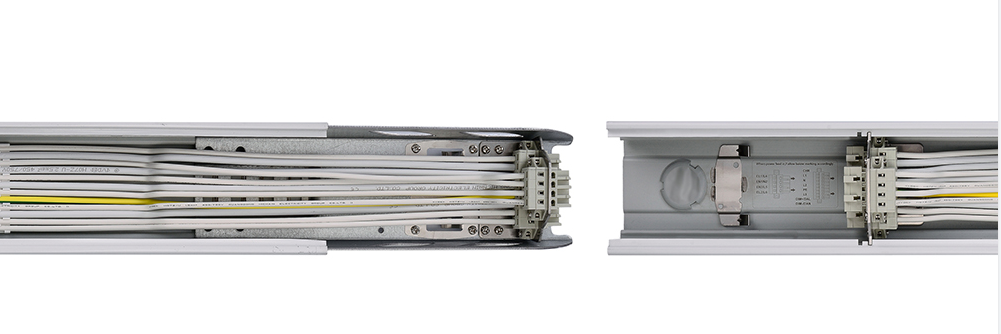

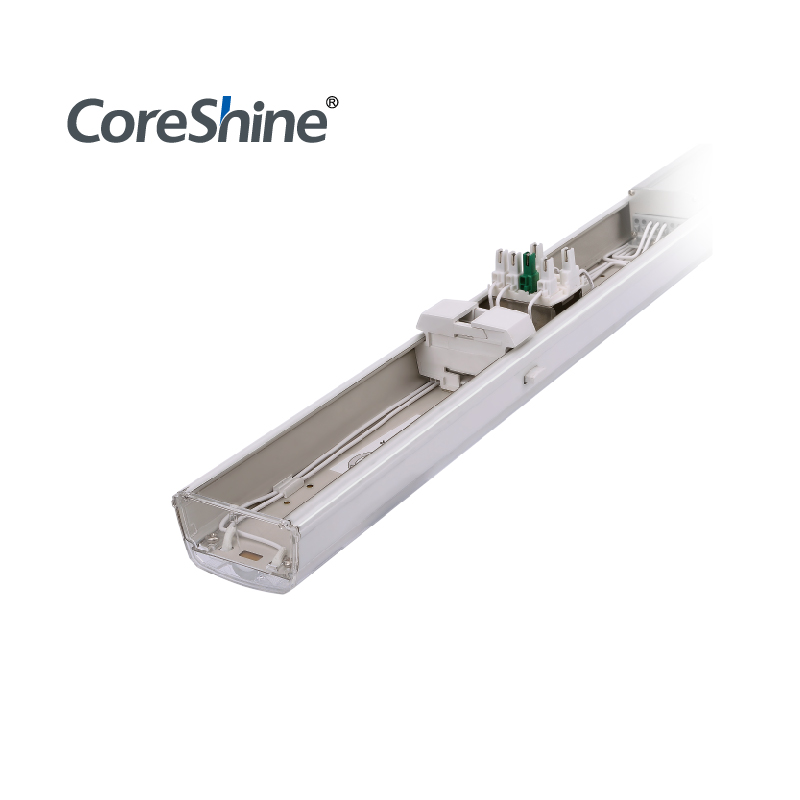

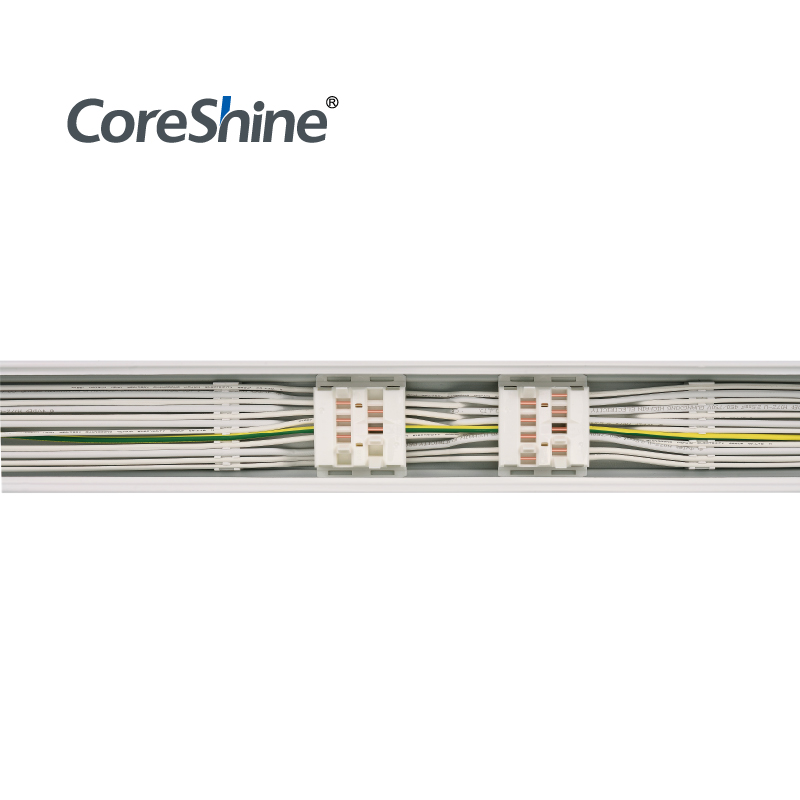

Trunking Rail
Trunking Rail Structure

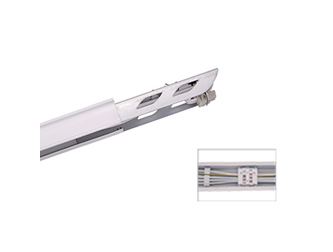

Trunking Rail View 1

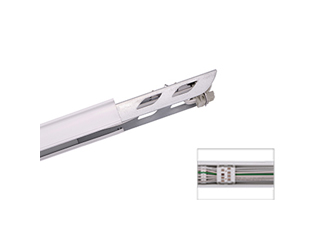

Trunking Rail View 2

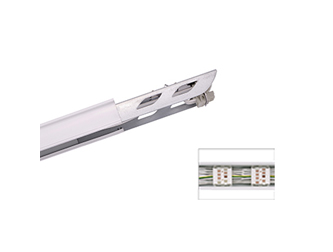

Trunking Rail View 3
5-PIN
L1 L2 L3 N PE
8-PIN
L1 L2 L3 N PE D+ D- CHR
12-PIN
L1 L2 L3 N PE D+ D- CHR EL1 EN1 EL2 EN2

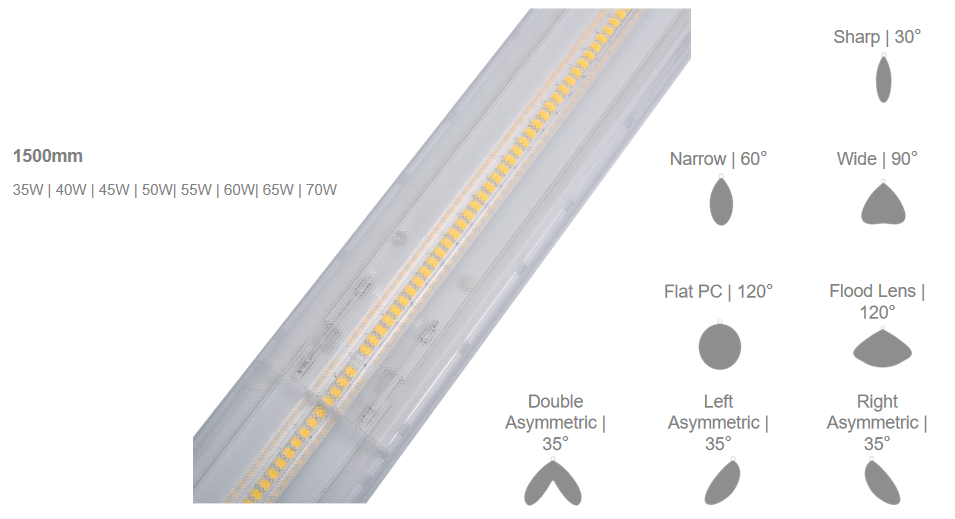

Luminaire
Luminaire Details

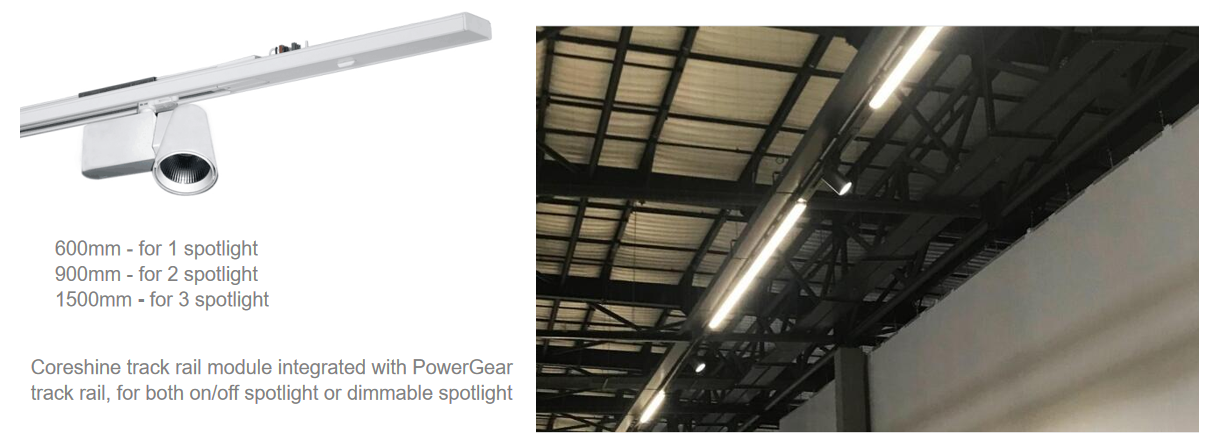

Track Rail Module
Track Rail Module Details

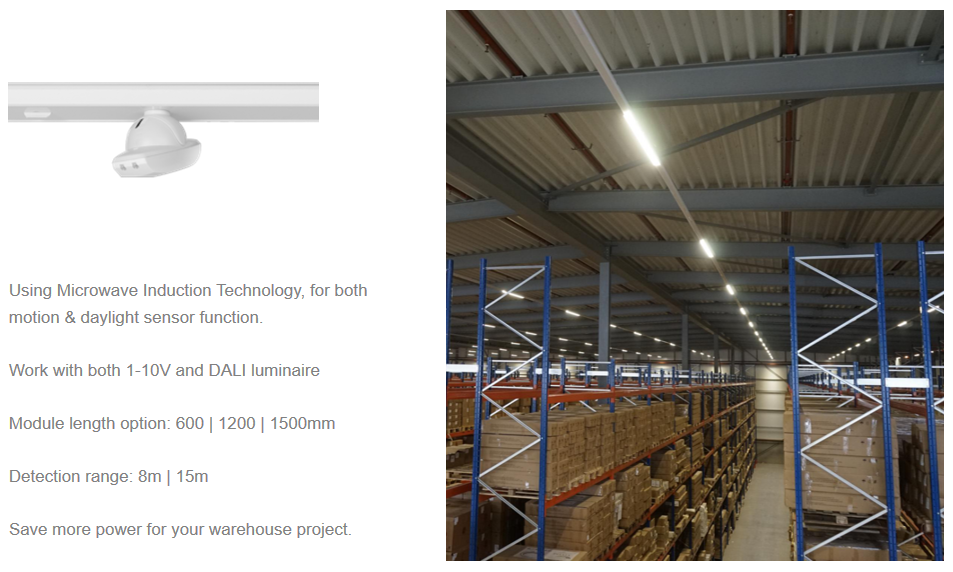

Sensor Module
Sensor Module Details

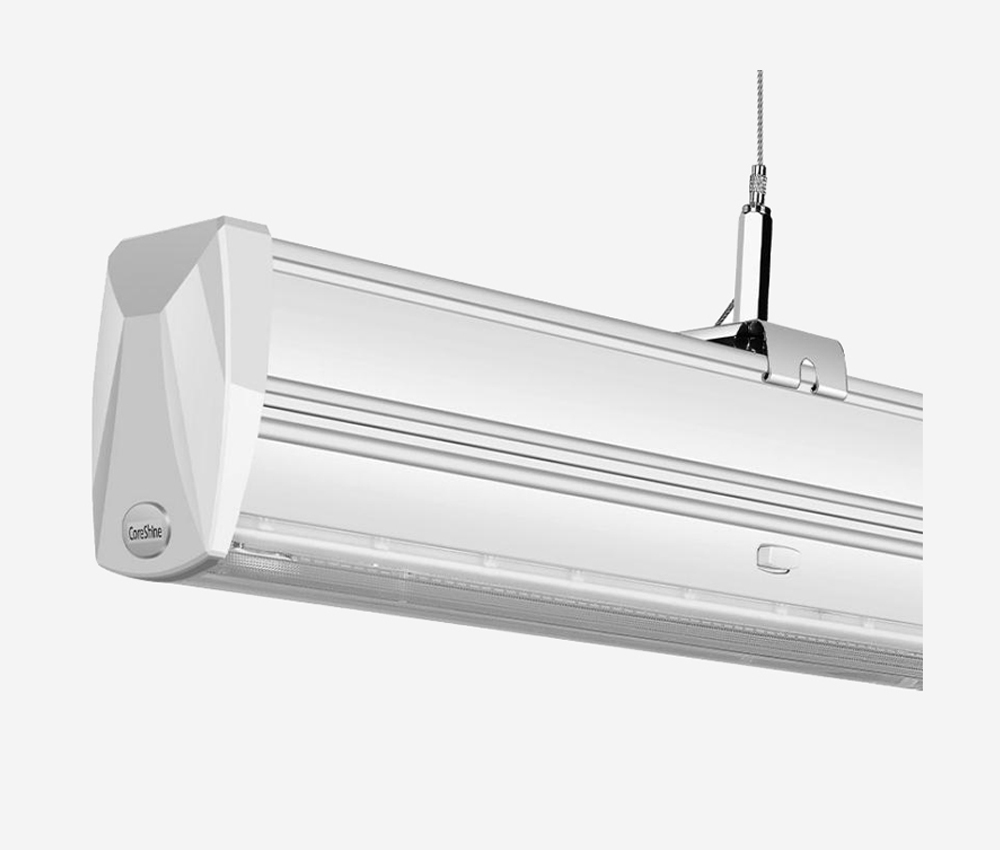

Product Presentation
Product presentation image
Product Name S-Line LED Linear Trunking System
Dimension 1500*76*70mm
Power 35/40/45/50/55/60/65/70W
Voltage AC 220-240V
Efficiency 195lm/w
Lumen 6825lm - 13650lm
CCT 2700K-6500K
Beam angle 30°, 60°, 90°, 120°, LS/RS, DS, FF
IP Rating 40

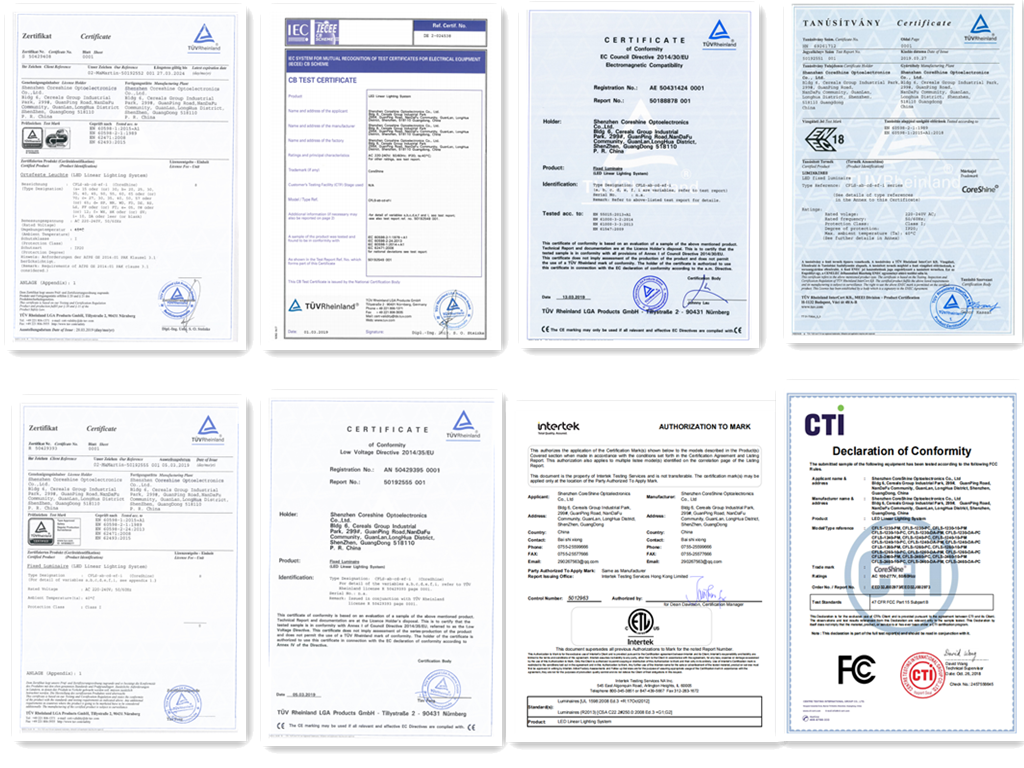

Certificate

GS / CB / CE / TUV / C-TICK / ENEC / RoHS

Certification Marks
Packing & Shipping
Outer box image
Outer box

The materials of outer box: 5 layers corrugated U636K carton box.
Advantage: Stronger and good cushioning material, provide more protection from damage when transit.

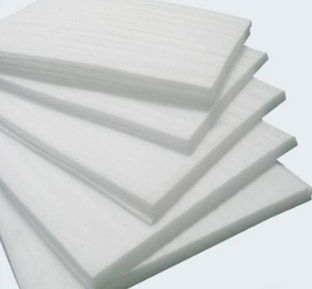

EPE packing cotton
EPE packing cotton

The materials of packing cotton is EPE with a density of more than 18KG.
Advantage: Environmental protection, waterproof, shockproof, sound insulation, heat preservation, strong toughness... also has a good chemical resistance.

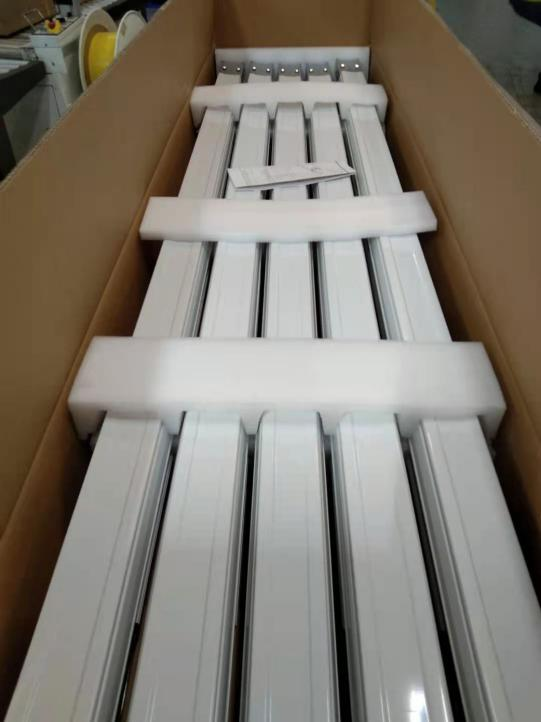

Trunking rail packaging
Trunking rail

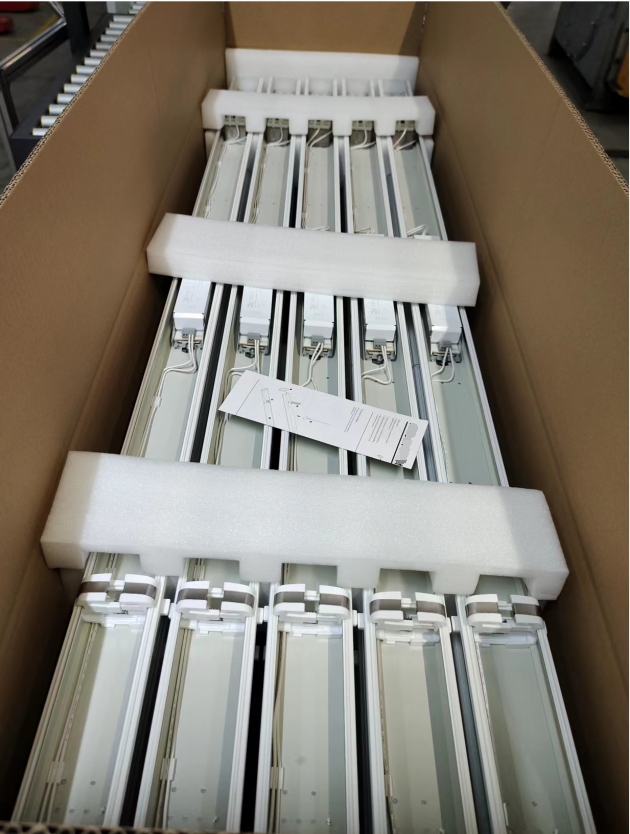

Luminaire packaging
Luminaire
Finished products packaging
Finished products
Pallet packing and logistics ready
Frequently Asked Questions
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 5-10 days, mass production time needs 3-4 weeks for order quantity more than 1000pcs.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive. Airline and sea shipping also optional.
Q5. Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q6. How to deal with the faulty?
A: Firstly, our products are produced in strict quality control system and the defective rate will be less than 0.3%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
